The key switch has the advantages of small contact resistance load, accurate operating force error, and diversified specifications. It has been widely used in electronic equipment and white goods, such as: audio-visual products, digital products, Remote control, communication products, household appliances, security products, toys, computer products, fitness equipment, medical equipment, money detector pens, laser pen buttons, etc. Because of the environmental conditions of the key switch (elastic force with pressure less than 2 times/environmental temperature and humidity conditions and electrical performance), large equipment and high-load buttons are directly replaced by conductive rubber or dome switch hardware shrapnel, such as medical equipment, TV. machine remote control, etc.
works Principle: The operating force of the key switch is related to the state of the reed. The starting force is proportional to the compression distance of the reed. When the reed is compressed to 5% to 70%, the operating force suddenly decreases, accompanied by a "tick" sound. Guide turtle rubber switch generally has two structures. The operating force curve varies greatly with the geometry of the rubber block.
Key Switch Product Introduction
1, high temperature SMD self-locking key switch span>
Operating force: 180gf±50gf
Lifetime: 30,000cycles
Specification: 5.8*5.8*7.9Features: self-locking/unlocking; automatic welding
purpose: Smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.
2, dustproof and waterproof key switch span>
Lifetime: 10,000cycles
Rated load: DC 50V 0.5A
Contact Resistance: 100mΩ Max
Specification: 5.8*5.8*8.0Features: Various shapes and sizes
Usage: Smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

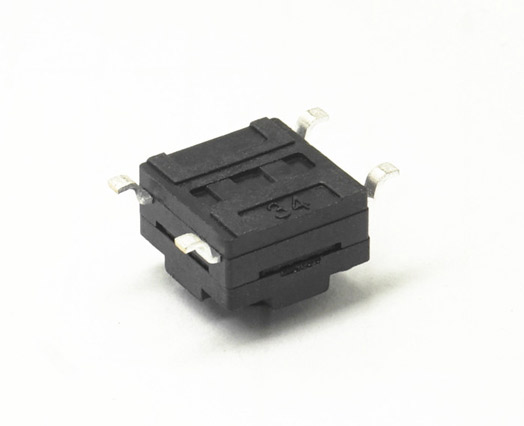

3, patch waterproof touch key switch
Operating force: 250gf±50gf
Lifetime: 100,000cycles
Waterproof grade: IP67
Waterproof grade: IP67
Features: The product lock cylinder mechanism has different structure designs without lock and with lock
purpose: Applicable to mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

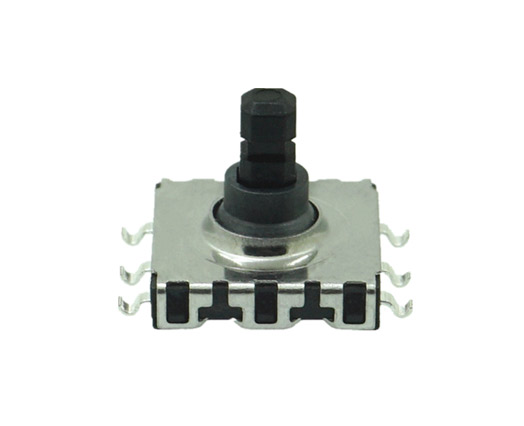

< span style="font-size:14px;">< span style="font-size:14px;">4, multi-function five-way key switch< /span>
operating force : 250gf±50gf
Specification: 12*12*9.0mm
Contact Resistance: 80mΩ Max
Insulation resistance: 100MΩ Min DC250V
Features: The switch has a crisp sound, good feel, rhythm, and high sensitivity
purpose: Smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

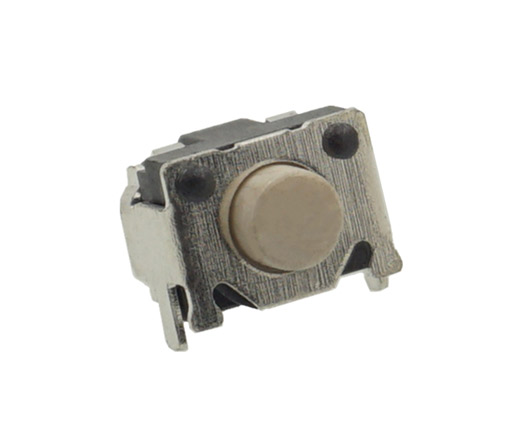

5, Smiley Side Key Switch< /span>< strong>
Rated load: DC 12V 50mA
Operating force: 180g/250f±50gf
Lifetime: 100,000cycles
Features: Different terminal pin positions and button heights can be designed to meet customer requirements.
purpose: Smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.
Key switch manufacturer introduction
 |
 |
 |
| Corporate Front Desk | Micro Switch Taping Machine | Micro Switch Workshop |
 |
 |
 |
| Micro switch automation production line | Warehouse | Micro switch injection workshop |
Dongguan Ou Gao Electronics Co., Ltd. is A professional company dedicated to high-quality electronic and electrical switches and sockets, the company has developed to the present, has accumulated many years of rich marketing experience and has manyMature high quality product. Switch products include: toggle switch, tact switch, micro switch, vibration switch, direct key switch, key switch, micro switch, leaf switch, push button switch, rocker switch; sockets: headphone socket, DC power socket, AC power supply Sockets; connectors include: USB connectors, battery connectors and other products.
