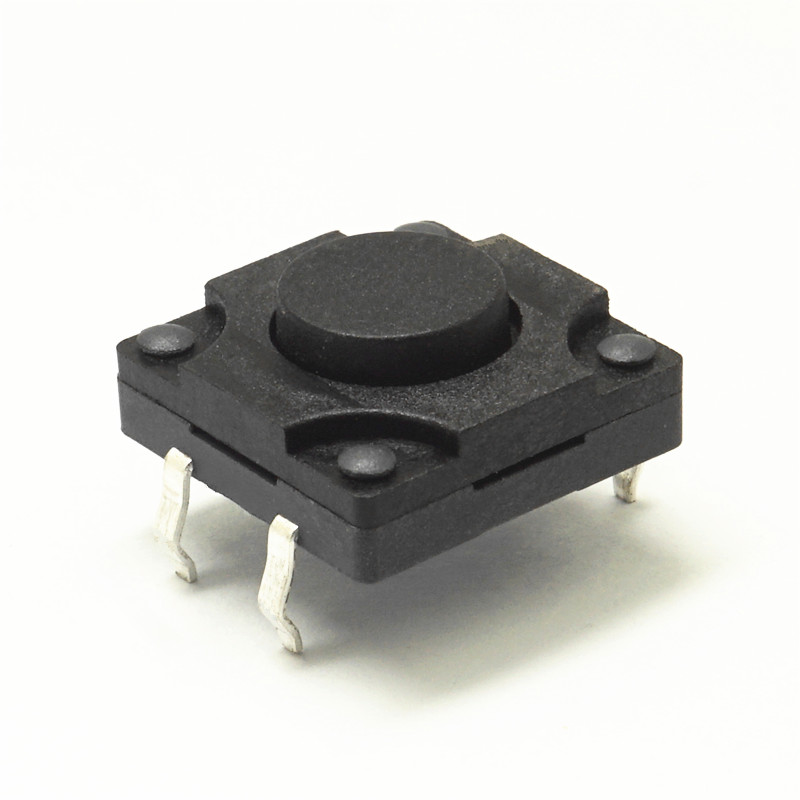

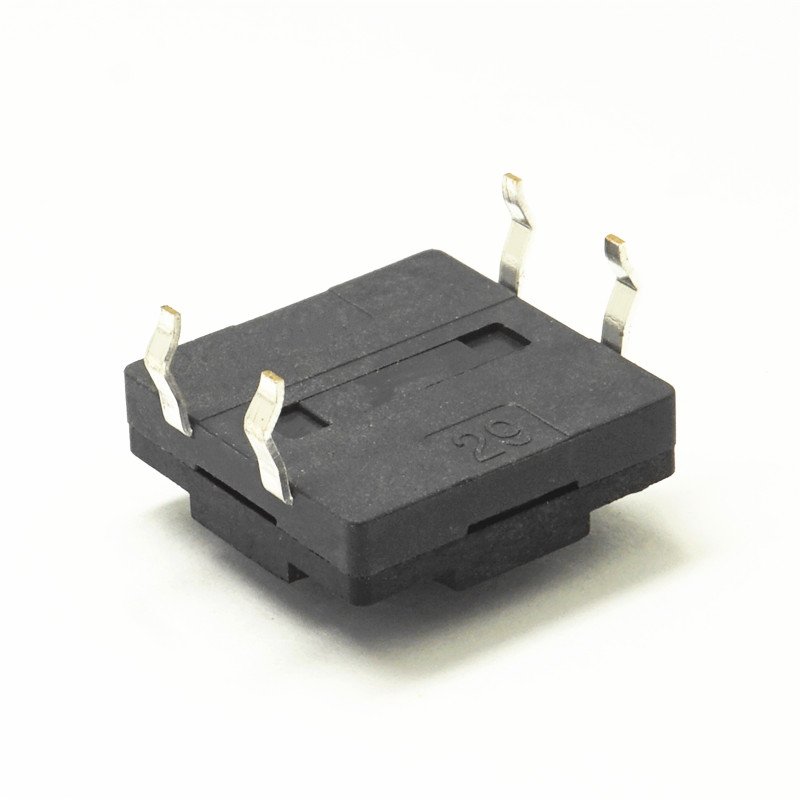

12*12 waterproof light touch patch key switch highly customizable waterproof/anti-silver migration

  • Specification:12*12*H
  • Model:TD-1841SP
  • Package:Bag/Roll
  • Life:100,000 times
12*12 waterproof light touch key switch, base height 3.65mm, total height 4.3-15.0mm can be customized, waterproof grade IP67, using anti-silver migration process.

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 50mΩ Max
Insulation resistance: 100MΩ Min AC250V
Operation  Operation  Force: refer to product specification
Lifetime: 100,000cycles
Waterproof grade: IP67
Anti-silver migration: 60V, 85℃, 90%RH/60H
Feature selection:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Product features:Can meet customer requirements to design different button heights
Applicable scope: smart speakers, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

Dimensional drawings

IP67防水12*12轻触按键开关尺寸图
