Small micro switch

Excellent quality, good service, very competitive price.

AUGO

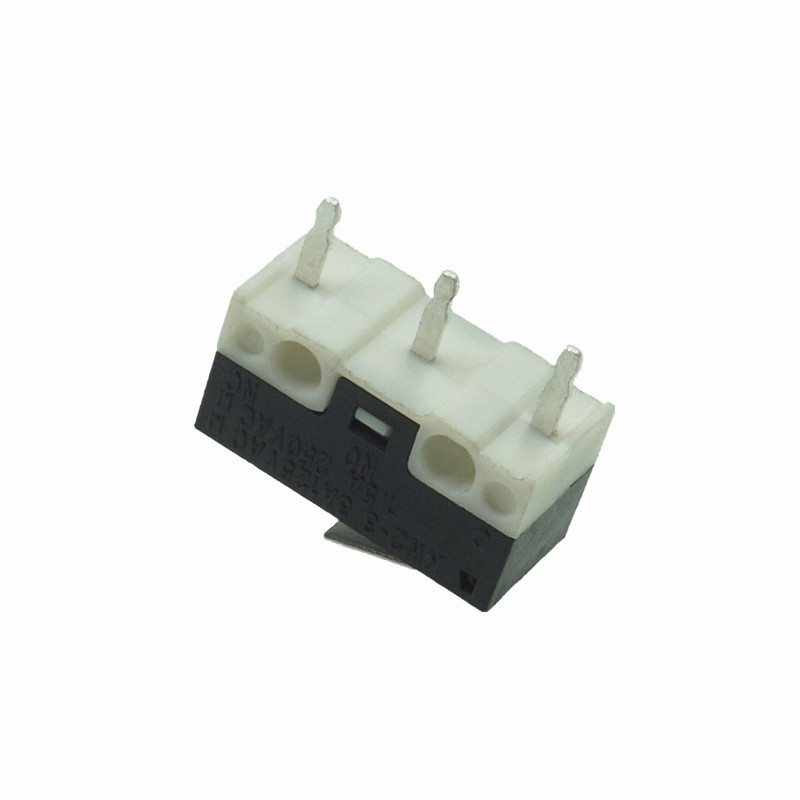

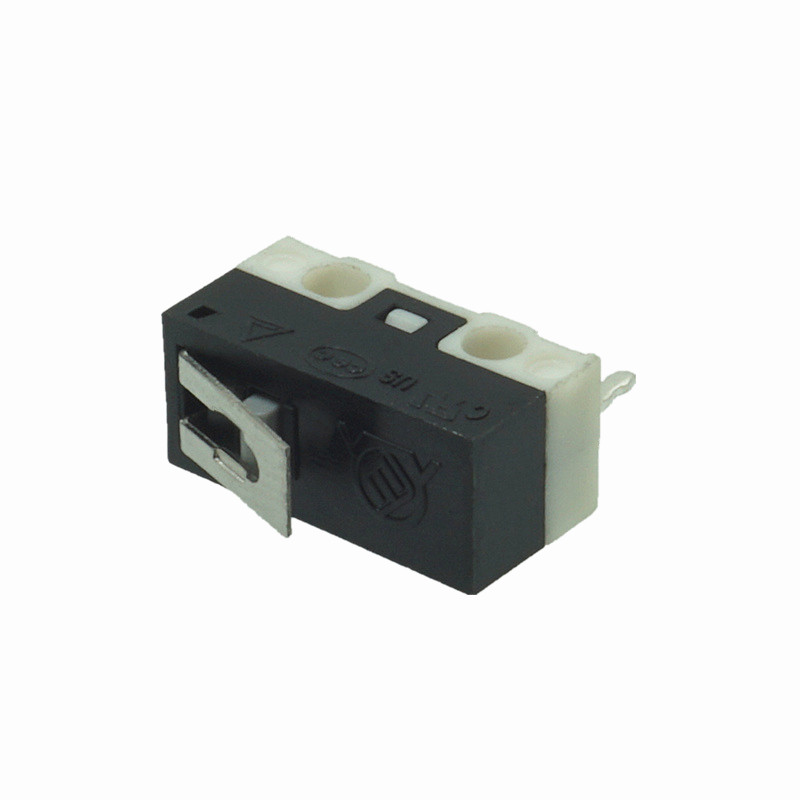

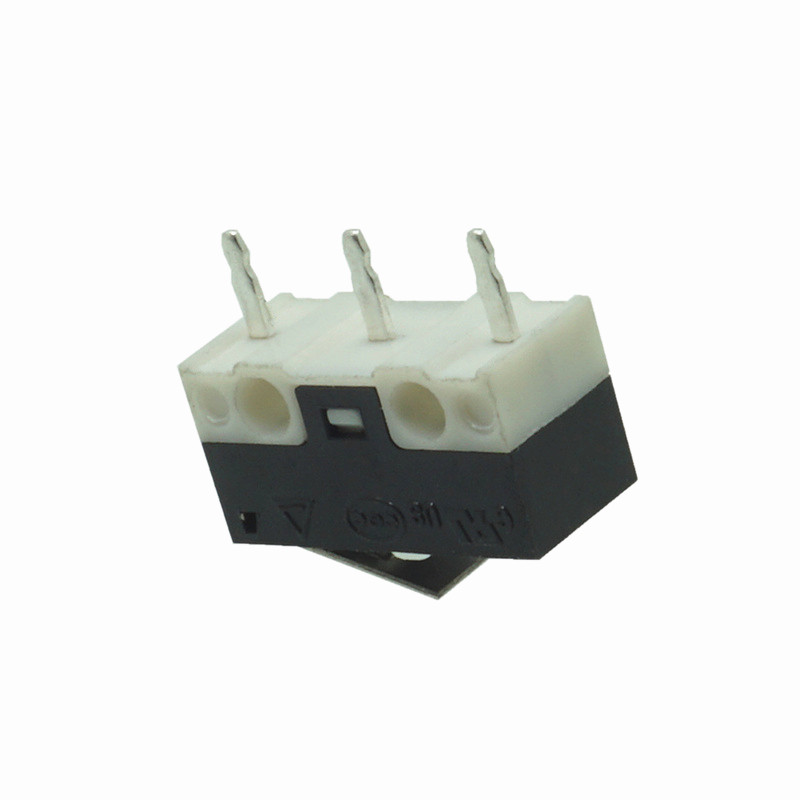

Mouse micro switch L12.8*W5.8*H6.6

  • Specification:L12.8*W5.8*H6.6
  • Model:KW2-3-68P-90-5
  • Package:1000PCS/bag
  • Life:1 million times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Availability:
Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

Specification

Technical parameters:
Use temperature: -25℃~85℃
Mechanical life: 1 million times
Contact Resistance: 500 mΩ MAX.
Insulation resistance: 100 MΩ MIN.

Electrical life: 10000 times
Features:
1. High-precision shrapnel structure to achieve fast switching, long life, and excellent touch.
2. The integrally formed terminal structure is adopted to prevent the flux from climbing up.
3. Equipped with various shapes of drive handles and various operating forces for product structure design.

Scope of application:Suitable for mouse, security, computer, communication products, household appliances, intelligent transportation, etc.

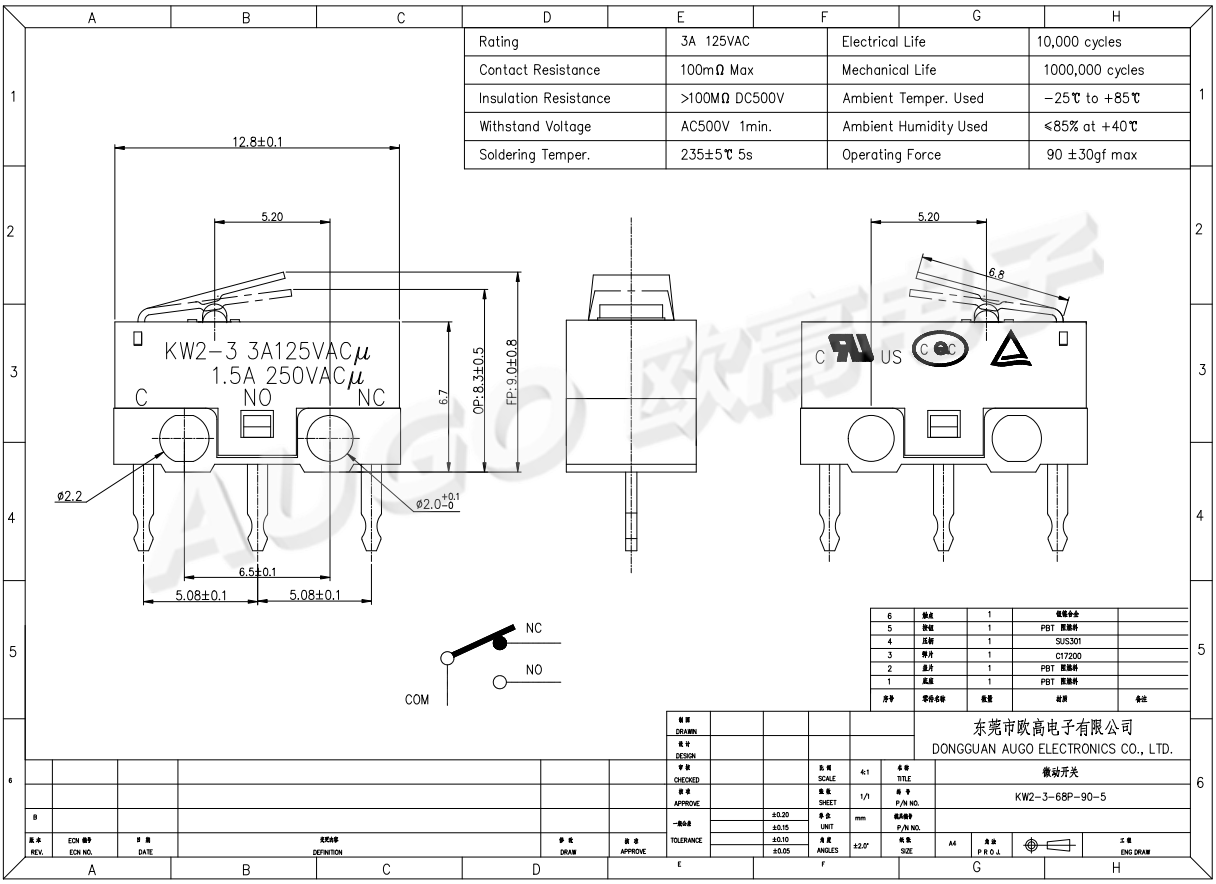

Dimensional drawings

鼠标微动开关尺寸图
