Tap the key switch

Excellent quality, good service, very competitive price.

AUGO

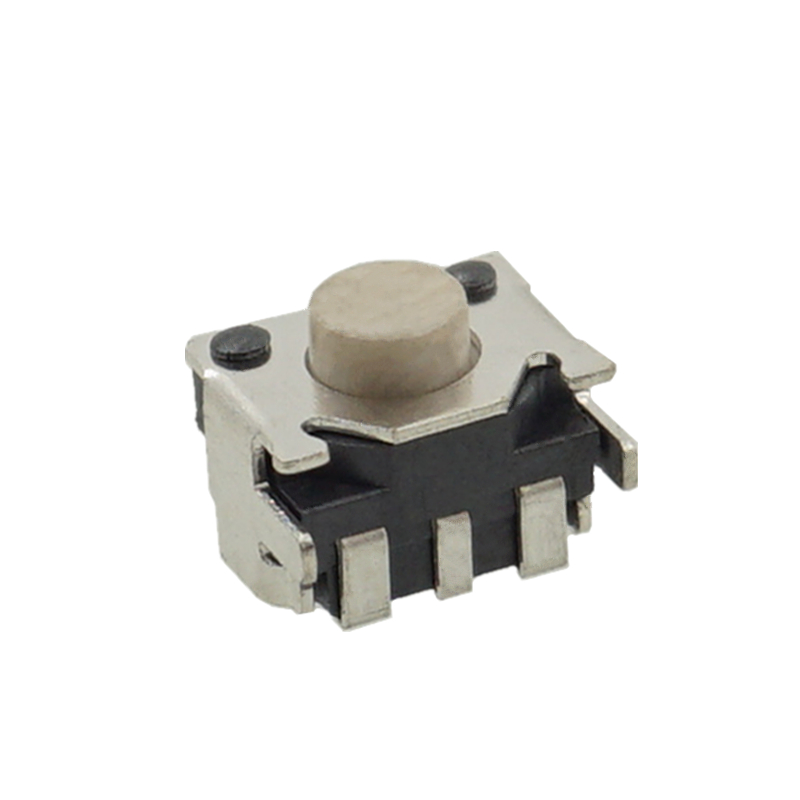

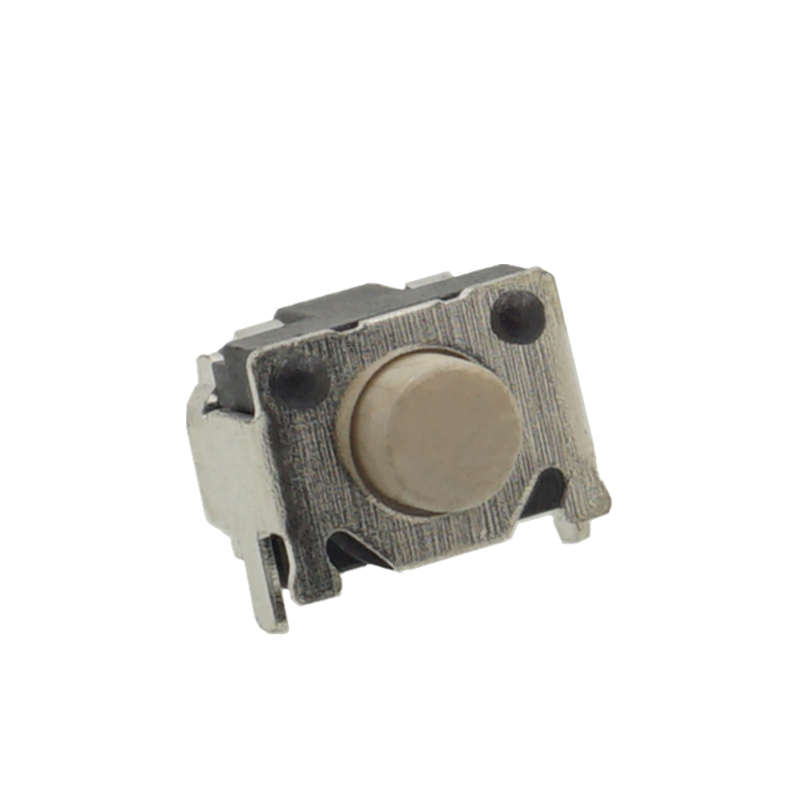

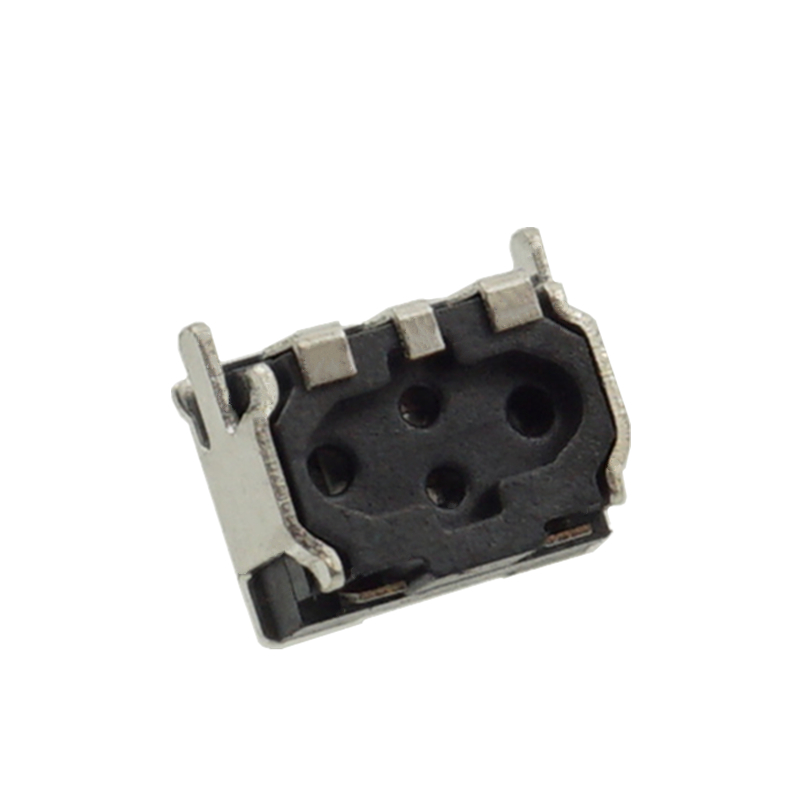

Smile side key switch 4.45*3.3*3.4

  • Specification:4.45*3.3*3.4
  • Model:TD-604XA
  • Package:3000PCS/disk
  • Life:20,000cycles
Feature options:
Use temperature: -25℃~80℃,Ambient humidity: ≤85%RH span>
Features:
Available in a variety of form factors
Clear switch sound, good feel, rhythm, and high sensitivity
Product lock cylinder mechanism has different structure designs without lock and with lock
Can meet customer requirements to design different terminal pins and different button heights
Applicable scope: smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments, children's toys, adult products, etc.

Specification

Technical parameters:
Rated load: DC 12V 50mA
Contact Resistance: 100mΩ Max
Insulation resistance: 100MΩ Min DC250V
Operating force: 180g/250f±50gf
Lifetime: 100,000cycles
Feature options:
Use temperature: -25℃~80℃
Ambient humidity: ≤85%RH
Features: Available in multiple sizes
Clear switch sound, good feel, rhythm, and high sensitivity
Product lock cylinder mechanism has different structure designs without lock and with lock
Can meet customer requirements to design different terminal pins and different button heights
Scope of application: smart meters, electric toothbrushes, smart sweepers, conversion equipment, instruments and meters, children's toys, adult products, etc.

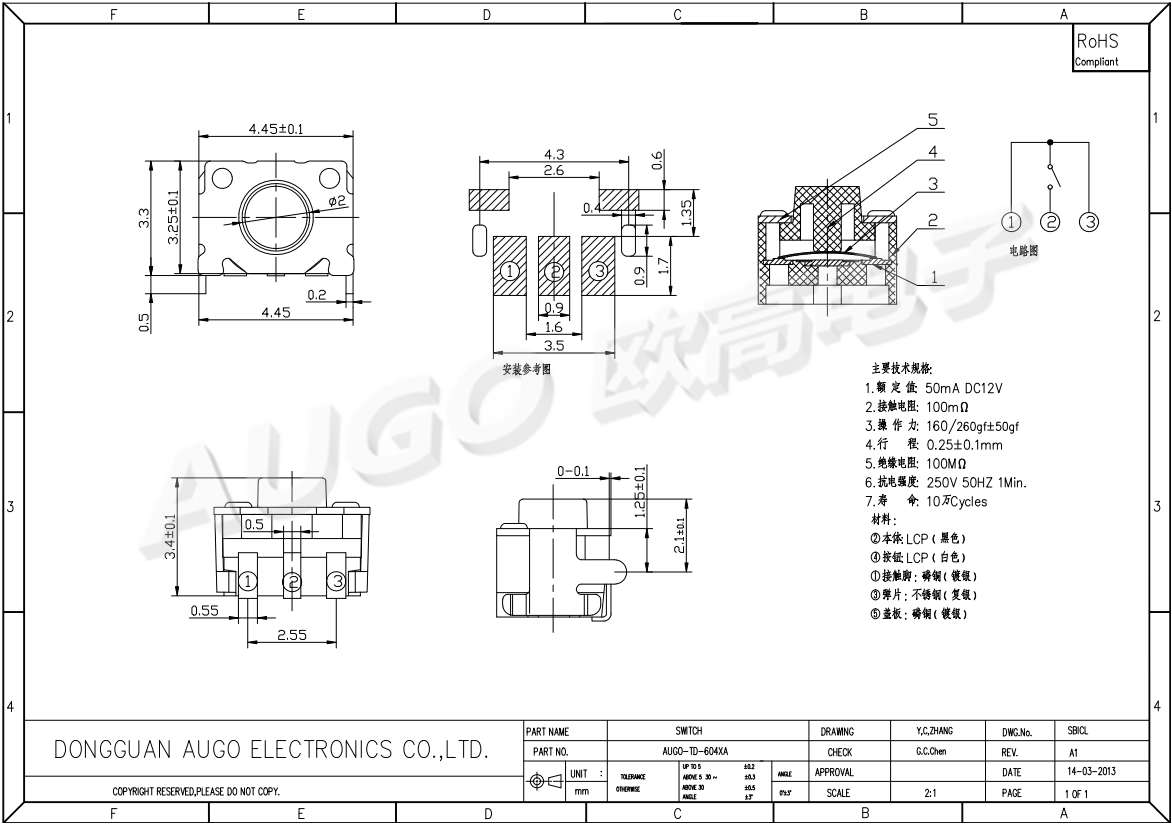

Dimensional drawings

笑脸开关 侧按键开关尺寸图
